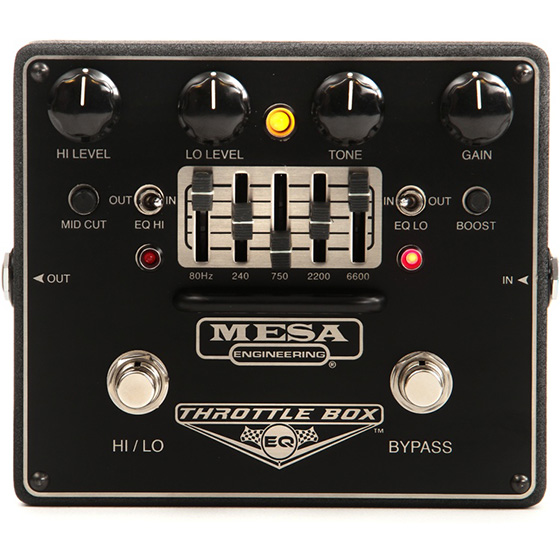

Mesa/Boogie Throttle Box EQ

Availability:in stock 3 item(s)
Product Code:MBFPTEQ
  • Dimensions (W/D/H): 5.78" x 4.76" x 2.30" (146.8mm x 121mm x 58.4mm)
  • Weight: 1.7lbs (817g) with (one) battery, 1.6lbs (726g) without battery
  • True Bypass Switching
  • Battery Type: 9VDC (One or Two – Two for extended battery-powered use)

  • Power Consumption (Current Draw): 9VDC/45mA
  • Designed and Handcrafted in Petaluma, California, USA
  • True Bypass On/Off Footswitch bypasses all circuitry when off to ensure no tonal loss
  • HI/LO Footswitch provides instant access between HI & LO (Gain) Modes for greater musical versatility
  • Gain Control allows you to dial in the perfect amount of classic to modern high-gain
  • Tone Control balances the amount of high frequencies
  • Mid-Cut Control provides powerful mid-scoop for modern high-gain styles
  • Boost Switch provides an enhanced EQ-voicing with more and lower bottom end, sweet tailored mids and crisp, shimmering highs


  • 5-Band Graphic EQ with LED Indicators provide Auto-Assignability to either Mode (HI or LO) via Independent On/Off Switches and Mesa’s legendary tone-shaping power with +/- 12db of boost or cut at 80Hz, 240Hz, 750Hz, 2.2Khz and 6.6Khz
  • Independent HI & LO Mode Master Level Controls provide exceptional performance versatility and a variable range of signal boost up to +20db for each Mode
  • On/Off Status LED with Dual Color LED’s to indicate the active Mode (LO = Yellow / HI = Red)
  • 9V Battery Powered or Externally Powered (optional) via External Power Supply Input Jack
  • Input & Output Jacks (Nominal Input -20 db)
